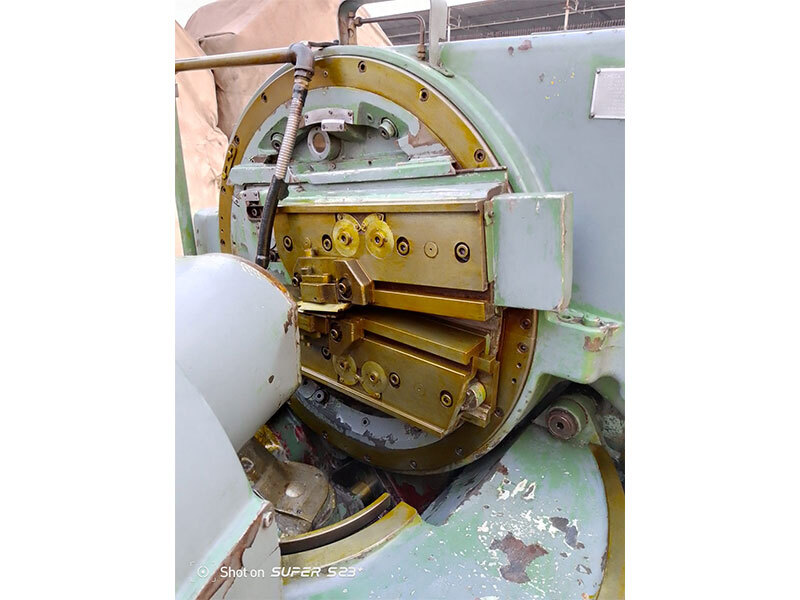

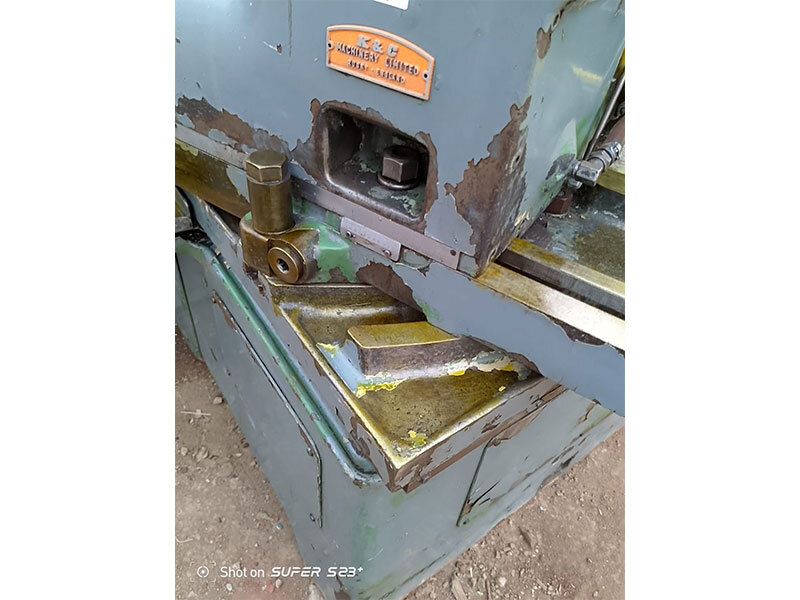

Gleason 14 Straight Bevel Gear Generator
A Gleason straight bevel gear generator is a machine specifically designed for the production of straight bevel gears. Gleason Corporation (USA), a prominent manufacturer of gear cutting machinery, produces a range of gear generators tailored for different gear types and applications. These machines are highly precise and capable of producing straight bevel gears with a high degree of accuracy and consistency.
Gleason No. 14 Straight Bevel Gear Generator has a Maximum Pitch Diameter of 24" and the Max. Cone Distance is 12".The complete technical details are provided below:
Description:
Machine Type: Straight Bevel Gear Generator
Machine Make: Gleason
Machine Model: No 14
Features: Versatility, High Precision, Advanced Controls.
Technical Specification:
| Manufacturer / Make | Gleason |
| Model | No. 14 |
| Condition | Used |
| Country | United States |
| Max. Pitch Diameter of Gear | 610 mm |
| Max. Cone Distance | 305 mm |
| Max. Face Width | 90 mm |
| Stroke Length | 12.7 mm - 108 mm |
| Max. Pitch | 3 D.P. |
| Pitch Angle | 5 Degree - 105 Degree |
| Extreme Ratio | 10:1 |
| Stroke Rate | 64 strokes/min - 495 strokes/min |
Buy used Straight Bevel Gear Generator Gleason No. 14 in very good working condition at a very competitive price.
