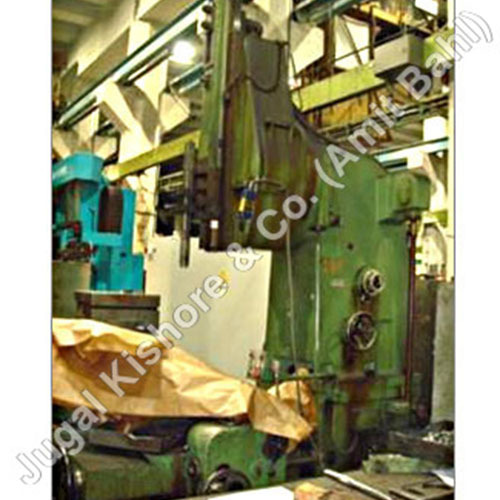

Vertical Slotting Machine

A slotting machine, also called vertical shaper is known to work by removing material from a metal workpiece to create the desired size hole. The Vertical Slotting Machine comprises a ram, clapper box, circular table, carriage, column, base, and feed shaft. The ram moves up and down in the vertical plane and can be either crank driven or hydraulically driven with 2 to 4 m/min speed. The machine makes the stroke for slotting the metal piece vertically. Using this machine, the operator can cut internal & external teeth on big gears, square holes, and punches & dies. The workpiece is held rigidly onto the machine and the tool mounted on tool-head moves along a vertical axis while operation. These machines offered by the company can be identified on the basis of their technical specifications and configurations as required according to the client’s need. They can handle a wide range of materials with different sizes and assures easy & accurate working.

A slotting machine, also called vertical shaper, shapes and sizes a workpiece by removing extra metal from it. The vertical slotting machine comprises a ram, clapper box, circular table, carriage, column, base, and feed shaft. The ram moves up and down in vertical plane and can be either crank driven or hydraulically driven with 2 to 4 m/min speed. The round table moves in rotary and cross directions. The machine makes the stroke, which ranges between 8” to 12”. Using this machine, the operator can cut internal & external teeth on big gears, machine square holes, punches & dies, make keyways, etc. The workpiece is held rigidily onto the machine, and the tool mounted on tool head moves along a vertical axis over the workpiece. The vertical slotting machine offered by the company can be identified on the basis of their technical specs, such as max. ram stroke, throat, table diameter, min. ram stroke, height between table and ram, pulling power, table load, total power requirement, weight of the machine, dimensions of the machine and control unit.
