| Gear Diameter | 500 mm |
| Gear Width | 310 mm |
| Maximum Module | 8 |
| Machine Dimensions (Approx.) | 5.5 × 2.8 × 2.9 m |
| Taper | MK 5 |
| Maximum Milling Cutter Diameter | 163 mm |
| Minimum Number of Teeth | 6 |
| Table Diameter | 405 mm |
| Gear Hobbing Width (Max.) | 310 mm |
| Machine Weight (Approx.) | 7.5 Ton |

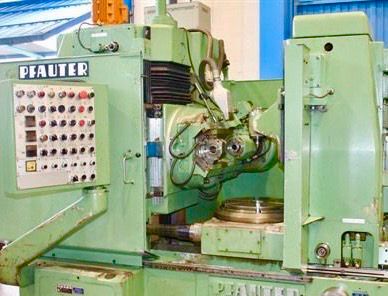

The GEAR HOBBING PFAUTER P 403 is a heavy-duty and high-precision gear hobbing machine designed for accurate manufacturing of spur and helical gears. Known for its rigid German engineering and long operational life, the Pfauter P 403 is widely used in industrial gear production environments.
With a maximum gear diameter of 500 mm, gear width up to 310 mm, and module capacity up to 8, this machine is suitable for medium to large-size gear manufacturing. Its solid construction ensures excellent stability, accuracy, and repeatability during continuous production.
For detailed specifications and availability, visit the product page: GEAR HOBBING PFAUTER P 403
The PFAUTER P 403 supports gear cutting up to 500 mm diameter.
The machine can cut gears with a width of up to 310 mm.
The maximum cutting capacity is Module 8.
The minimum number of teeth that can be cut is 6.
The machine supports a milling cutter diameter of up to 163 mm.
Yes, the PFAUTER P 403 is suitable for both spur and helical gears.
Yes, this machine is available for immediate sale in India. Inspection and delivery assistance are provided.
Please contact us through the product page to get the best price for GEAR HOBBING PFAUTER P 403.
