Barber Colman 6-10 Gear Hobbing Machine

View All Gear Hobbing Machine for Sale

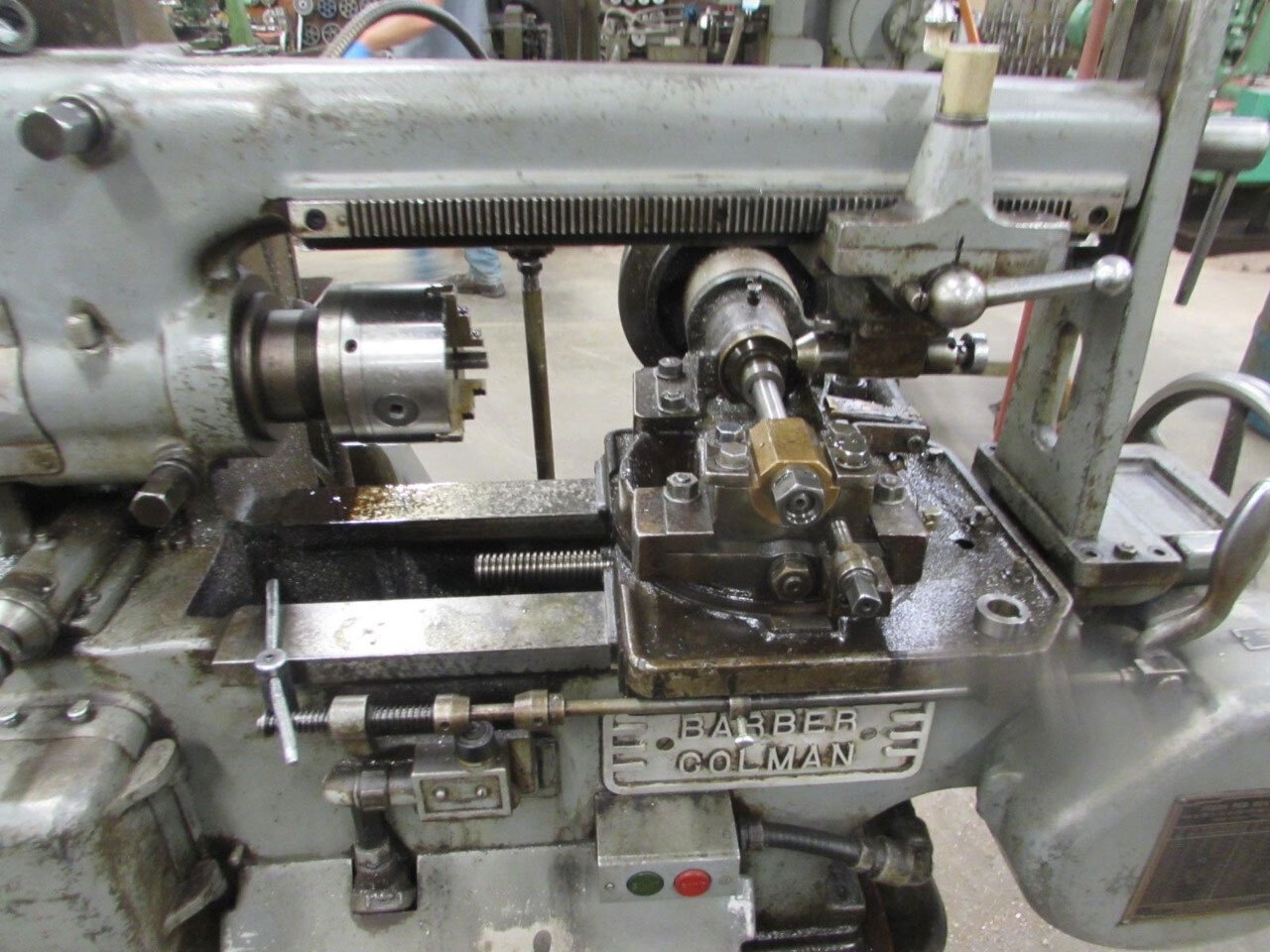

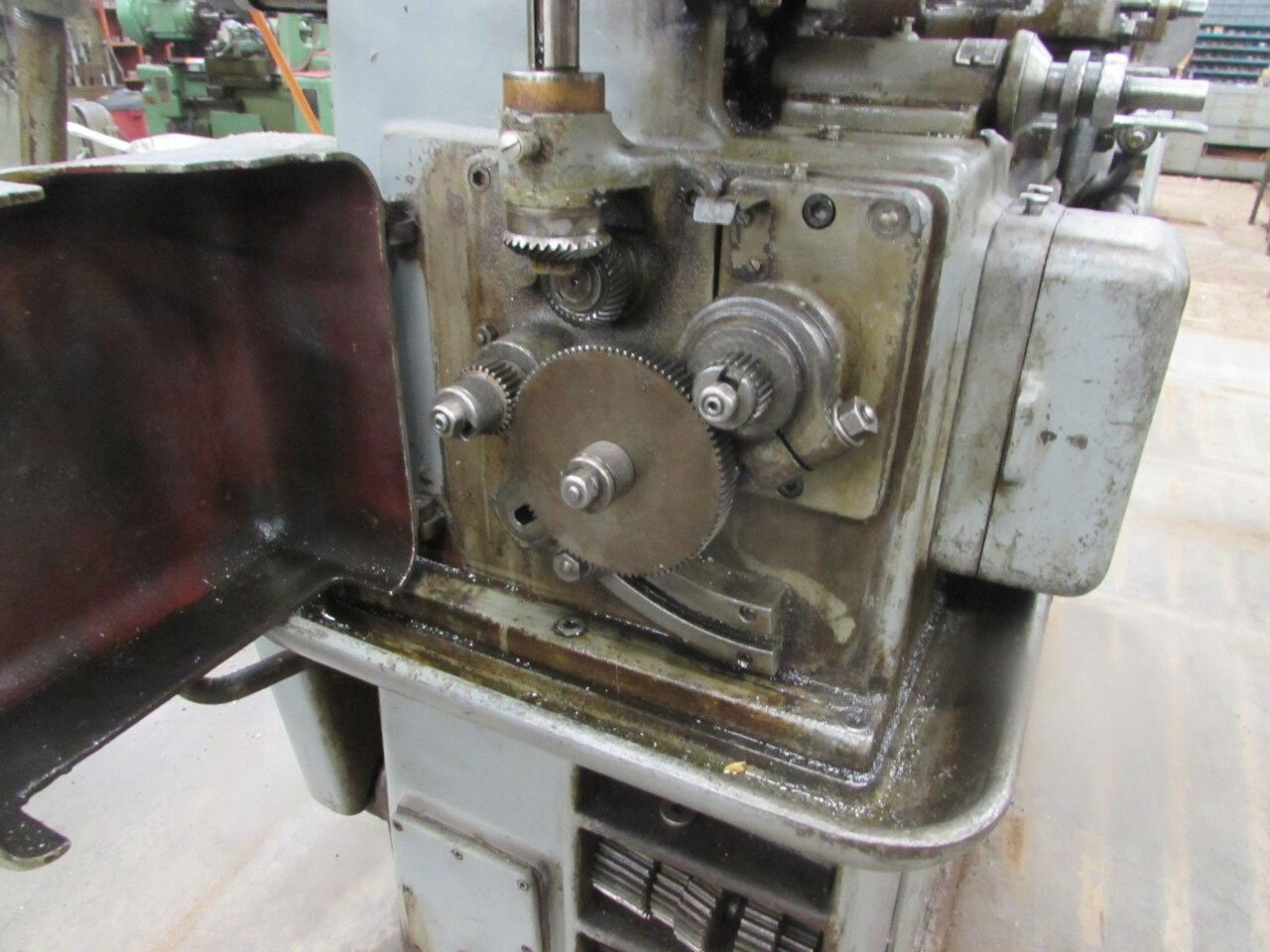

Barber Colman 6-10 Gear Hobbing Machine


Gear Hobbing Barber Colman 6-10 is rugged enough to stand up under heavy production work, and at the same time has unusual accuracy. The hydraulic operation, automatic cycling, and rugged construction combine to make Barber Colman 6-10 especially suitable for high production work. However, because of the ease of set-up, it can also be used quite profitably for short-run work.

Built-in units include motor drive, rapid traverse on the hob slide in both directions, and a "stabilizer"to smooth out the cutting action. Other features include improved means of adjusting for wear in a number of important places, a single box- section overarm, a rapid unloading device, and an improved oiling system. Greater rigidity and accuracy have been built into every part of the machine to insure lasting dependability.


Technical Specifications:

Maximum Work Diameter

150 mm

Maximum Travel Of Hob Carriage

270 mm

Maximum Dist. Spindle Face To Tailstock Center

400 mm

Maximum Diametric Pitch, 1 Cut

16 DP - 2" dia

Maximum Diametric Pitch, 1 Cut

48 DP - 6" dia

Maximum Hob Diameter

55 mm

Hob Speed

133 - 533 RPM

Work Spindle Bore

26 mm

Weight Of Machine

1600 Kg












For sale in India, Used Barber Colman 6-10 Gear Hobbing Machine in  a very good condition at best price.
