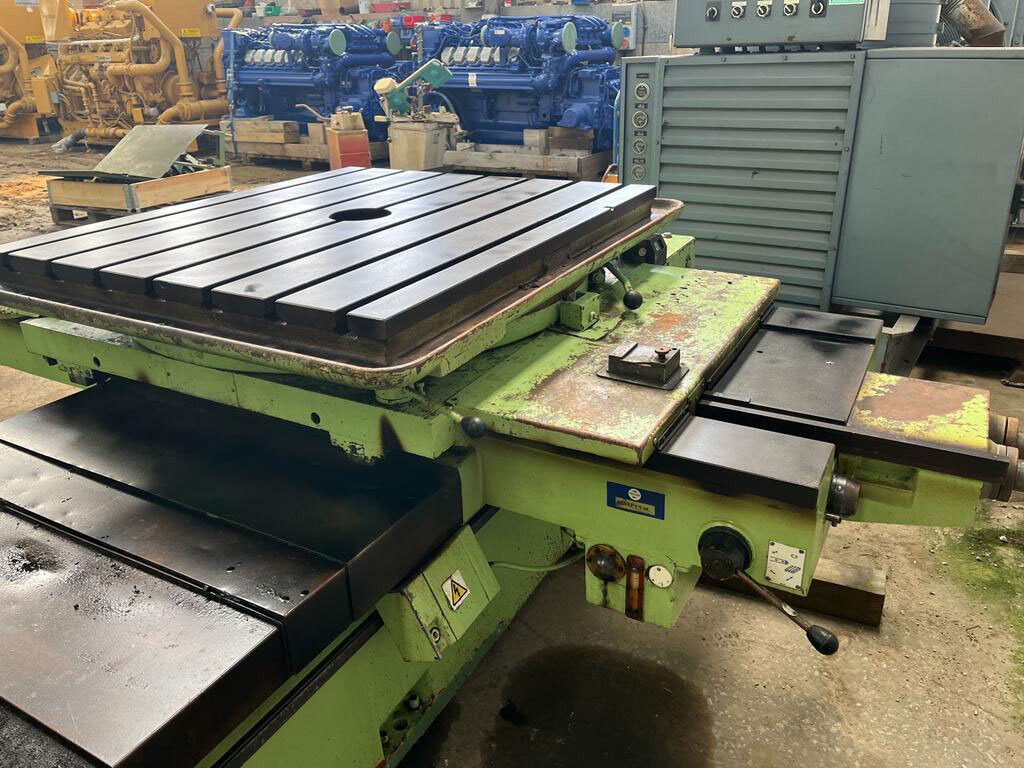

WMW Union Horizontal Borer BFT 80/2
The WMW Union BFT 80/2 is a horizontal boring machine that was manufactured by the German company WMW in the 1980s. This machine has a spindle diameter of 80 mm and a spindle travel of 710 mm, making it suitable for drilling and boring large holes in heavy work pieces. The machine has a table size of 1410 mm x 1250 mm Overall, the WMW Union BFT 80/2 is a reliable and sturdy machine that is suitable for heavy-duty drilling and boring operations.
Description:
Machine Type: Horizontal Borer
Machine Make: WMW Union
Machine Model: BFT 80/2
Features: Easy installation, Sturdy design,High precision
Technical Specifications:
| Spindle | 80 mm |
| Table Size | 1410 mm x 1250 mm |
| Table Longitudinal Traverse (Y) | 2000 mm |
| Table Cross Traverse (X) | 1250 mm |
| Table Swivels | 360 Degree |
| Head Stock Vertical Traverse (Z) | 1150 mm |
| Input | 415 V / 3 Ph / 50 Hz / 7.5 KW |
| Spindle & Facing Speeds | 8 - 200 RPM |
| Spindle Speeds | 250 - 1600 RPM |
| Feed Rate | 0.003 - 20 mm / Min |
| Spindle Taper | 5 MT |
| Facing Head Diameter | 520 mm |
| Facing Head Slide Cross Traverse | 180 mm |
| Spindle Traverse | 710 mm |
| Digital Read Out | Anilam |
Used Horizontal Boring Machine WMW Union BFT 80/2 for sale in an excellent working condition at a reasonable price.
