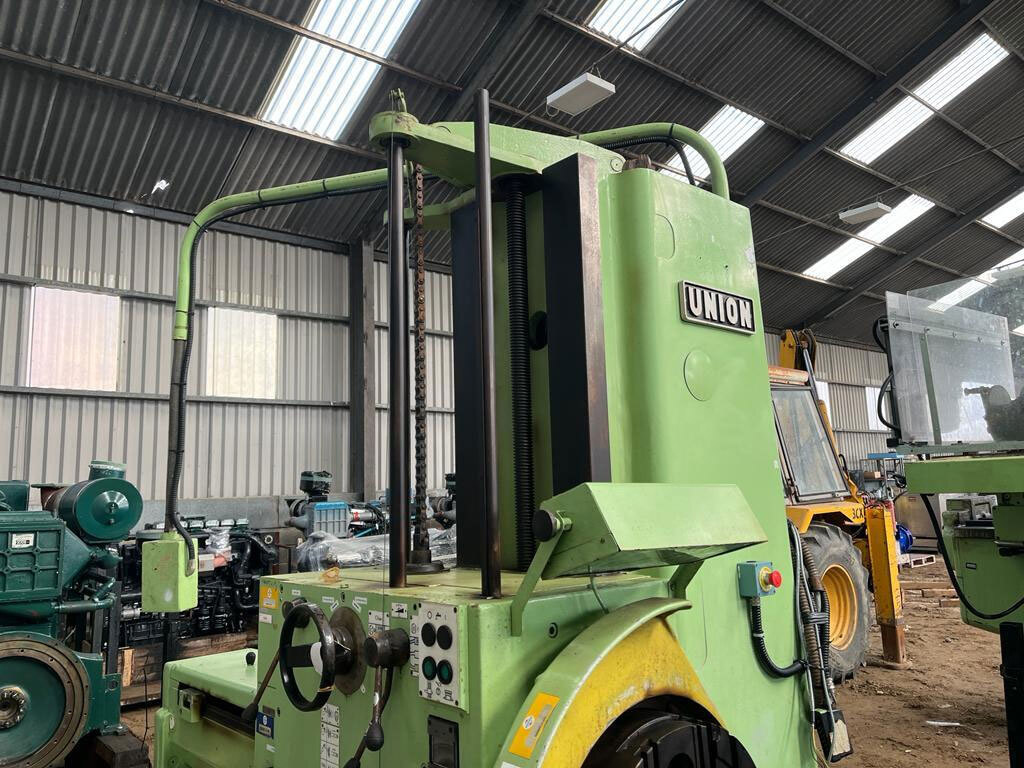

WMW Union BFT 80/2 Horizontal Boring
WMW Union BFT 80/2 Horizontal Boring Machine has always been a desired Horizontal Boring Machine in Indian market.
1250 mm table cross travel, 1250 mm vertical head travel, 710 mm Spindle travel, large size T slotted 360 degree rotary 1410 X 1250 mm table enables the WMW Union Boring BFT 80/2 to machine mid size jobs quite easily and comfortably. Tale stock equipped machine enables to do line boring operations. DRO and pendant control always makes it comfortable for operator to have a closer job monitoring.
Overall it is a very durable, rigid machine and very easy to maintain and repair.
Description:
Machine Type: Horizontal Boring Machine
Machine Make: WMW Union
Machine Model: BFT 80/2
Features: Easy installation, pocket friendly prices,minimum maintenance
Technical Specifications:
| Spindle | 80 mm |
| Table Size | 1410 mm x 1250 mm |
| Table Longitudinal Traverse (Y) | 2000 mm |
| Table Cross Traverse (X) | 1250 mm |
| Table Swivels | 360 Degree |
| Head Stock Vertical Traverse (Z) | 1150 mm |
| Input | 415 V / 3 Ph / 50 Hz / 7.5 KW |
| Spindle & Facing Speeds | 8 - 200 RPM |
| Spindle Speeds | 250 - 1600 RPM |
| Feed Rate | 0.003 - 20 mm / Min |
| Spindle Taper | 5 MT |
| Facing Head Diameter | 520 mm |
| Facing Head Slide Cross Traverse | 180 mm |
| Spindle Traverse | 710 mm |
| Digital Read Out | Anilam |
Used Horizontal Boring Machine WMW Union BFT 80/2 for sale in excellent working condition at a very competitive price.
