Vertical Machining Centre Excel PMC-10T24

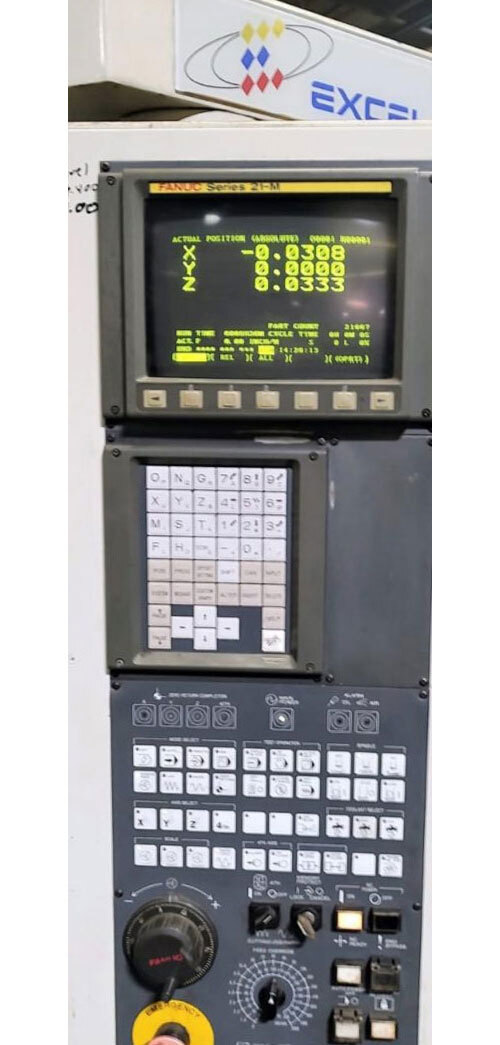

Excel PMC-10T24 Vertical Machining Centre is a CNC machine which is used for creating different, simple or complex profiles on work pieces with utmost precision & ease. To provide user friendly nature, this machine has been equipped with color LCD monitor for viewing set parameters and for easy control as well. This Used Excel PMC-10T24 Vertical Machining Centre is known for its high cutting speed with smooth operation and long service life.
Our offered Vertical Machining Centers are used in many industrial applications. Our range of product is sternly verified on many parameters before delivering. We are offering these machines in standard specifications. We provide our range of products to our clients at economical price in the market.
Description:
Machine Type: Vertical Machining Centre
Machine Make: Excel
Machine Model: PMC-10T24
Features:
Long working life,High efficiency, Durable finish standard
Technical Specifications:
| Machine Control | Fanuc 21-M |
| Table Size | 1100 X 500 mm |
| Machine Travel (X Axis) | 1000 mm |
| Machine Travel (Y Axis) | 510 mm |
| Machine Travel (Z Axis) | 560 mm |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10000 RPM (Max) |
| Rapid Traverse Rate (X/Y/Z) | 944 IPM |
| Tool Changer Style | Side-Mount Twin-Arm |
| Max Cutting Feed Rate | 004-157 IPM |
| Spindle To Table Distance | 944 IPM |
| Tool Changer Capacity | 24 Position |
| Max Tool Length | 300 mm |
| Max Tool Weight | 5.4 Kg |
| Spindle Drive | 14.7 HP |
Buy used Vertical Machining Centre Excel PMC-10T24 at a very competitive price.
