TOS W100 A Horizontal Boring Machine

View All Horizontal Boring Machine for Sale

TOS W100 A Horizontal Boring Machine

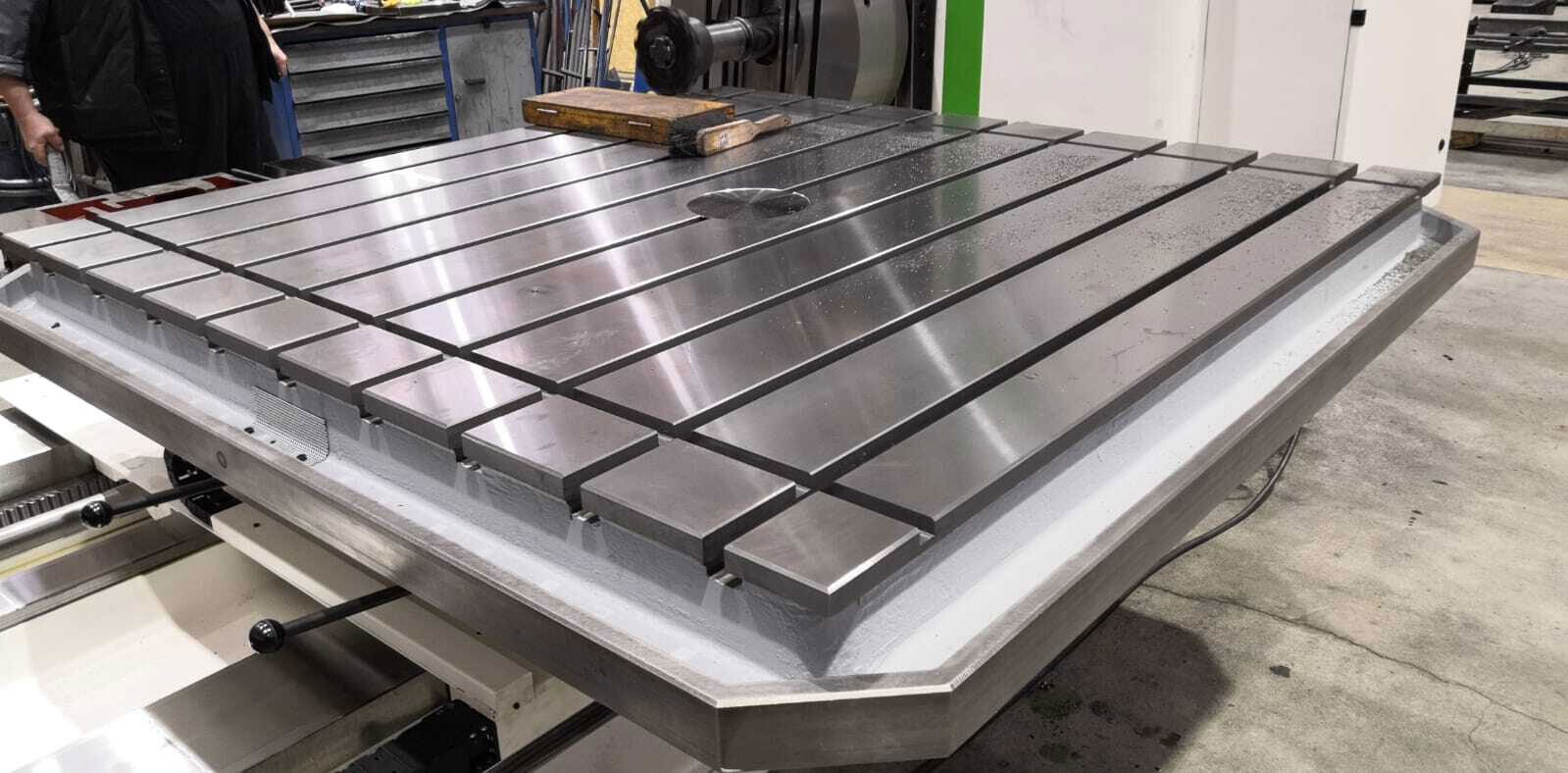

TOS W100 A Horizontal Boring Machines are first choice for fabricators, machine tool builders. The machine has hard and ground self lubricating guide ways with motorized ISO 50 spindle. The long 1600 mm table cross travel gives an ease to cover and machine most off the wide jobs, 360 degree rotary table allows machining on all sides and at various  angles.

Tail stock equipped machines are perfect for line boring. The machine is also equipped with pendant control for easy operation of various axis of the machine, while keeping a close eye at the job. A minute movement of the axis is closely monitored though original Czech made TESLA digital readout.


Machine Type: Horizontal Boring Machine

Machine Make: TOS

Machine Model: W100 A


Features: Long functional life, Optimum performance.


Technical Specifications:

Manufacturing Year


Spindle Diameter

100 mm

Spindle Taper

50 ISO

Spindle Speed Range

1120 RPM

Table Cross Travel (X)

1600 mm

Headstock Travel (Y)

1120 mm

Table Longitudinal Travel (Z)

810/1250/1750 mm

Spindle Stroke (W)

900 mm

Table Clamping Surface

Max. 1500 X 1500 mm

Table Loading Capacity

Max. 3000 Kg

Machine Equipped With

Tale Stock and D.R.O














Buy Used Horizontal Boring Machine TOS W100A in very good working condition at a very competitive price.
