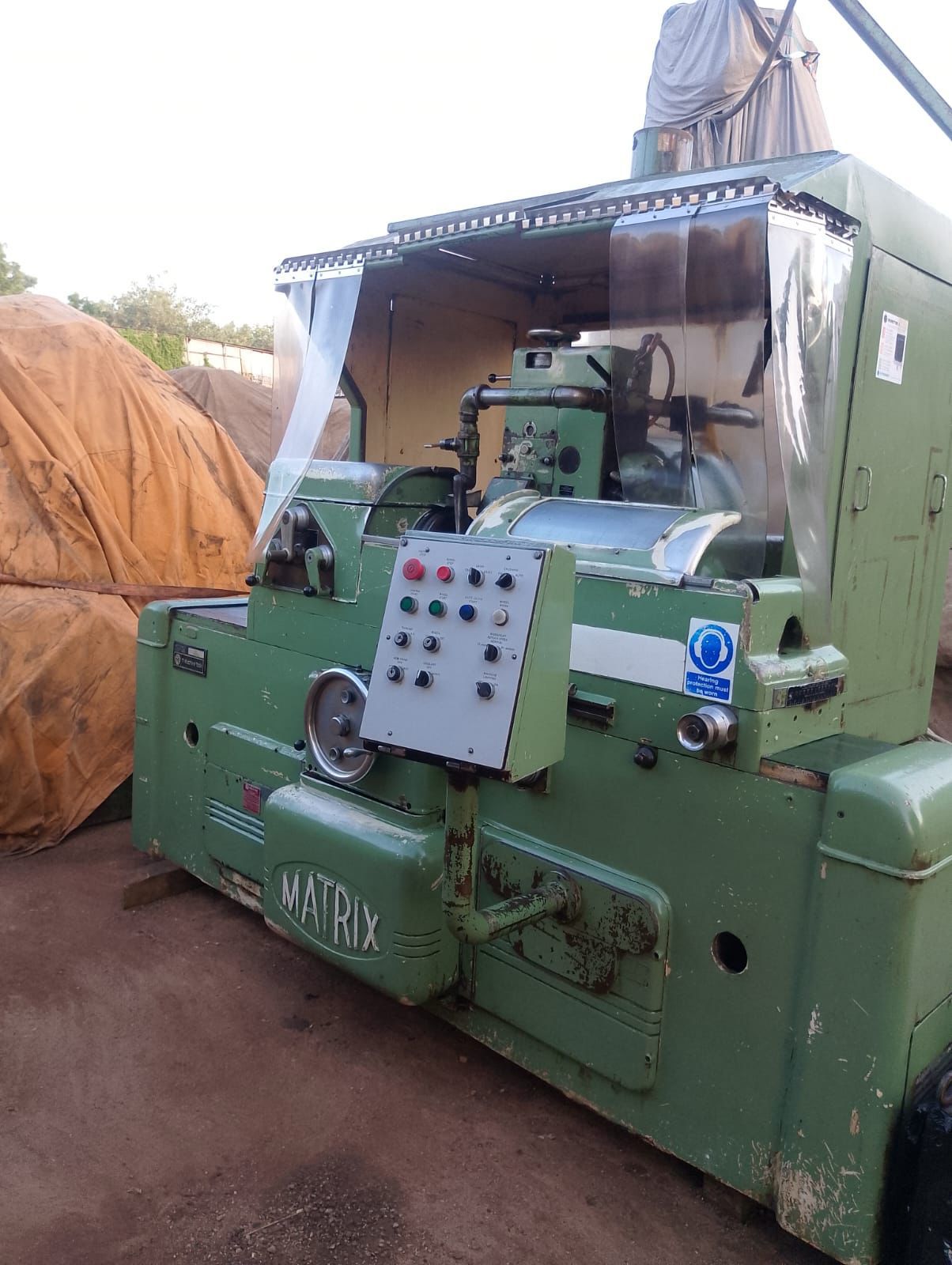

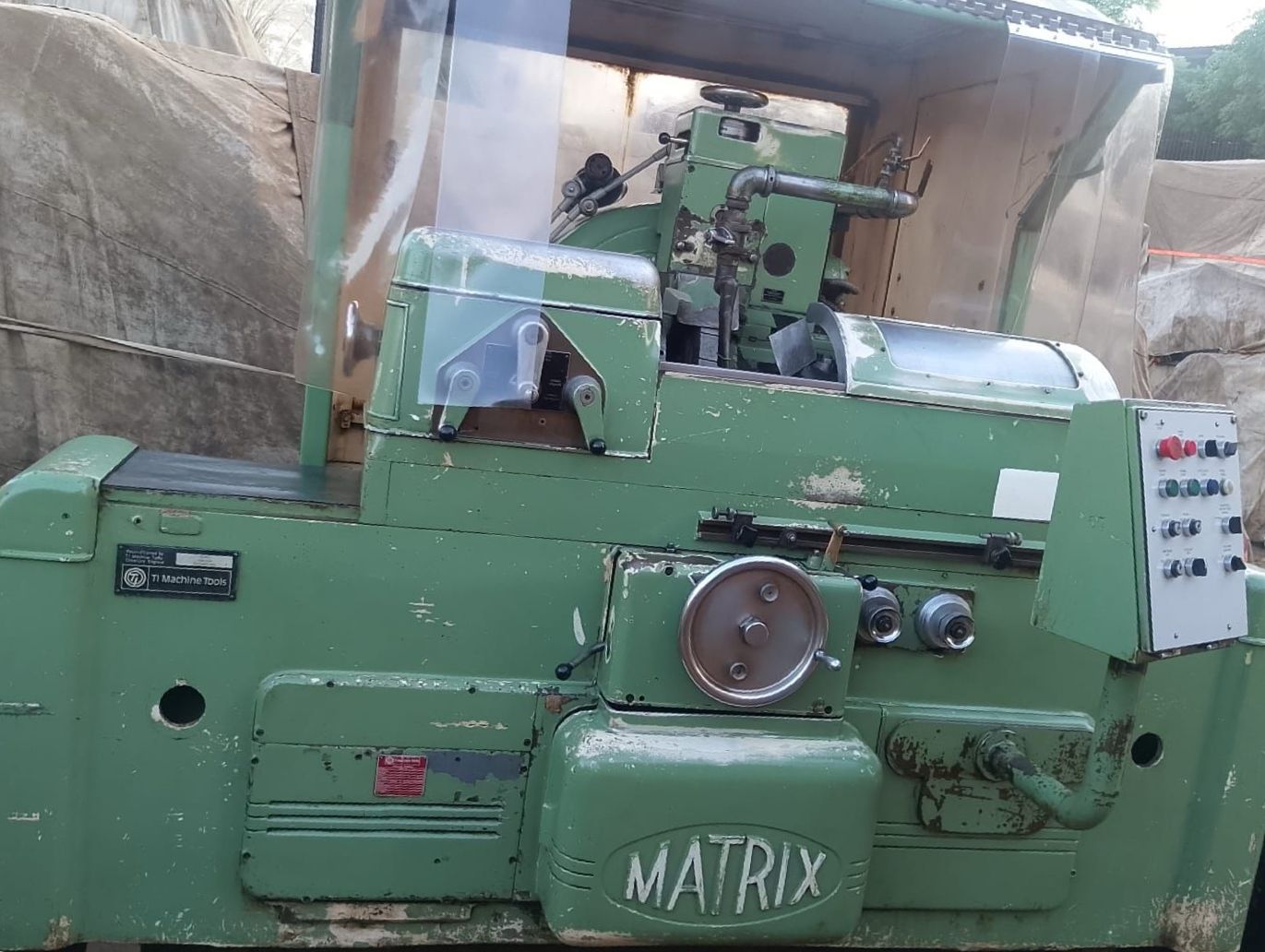

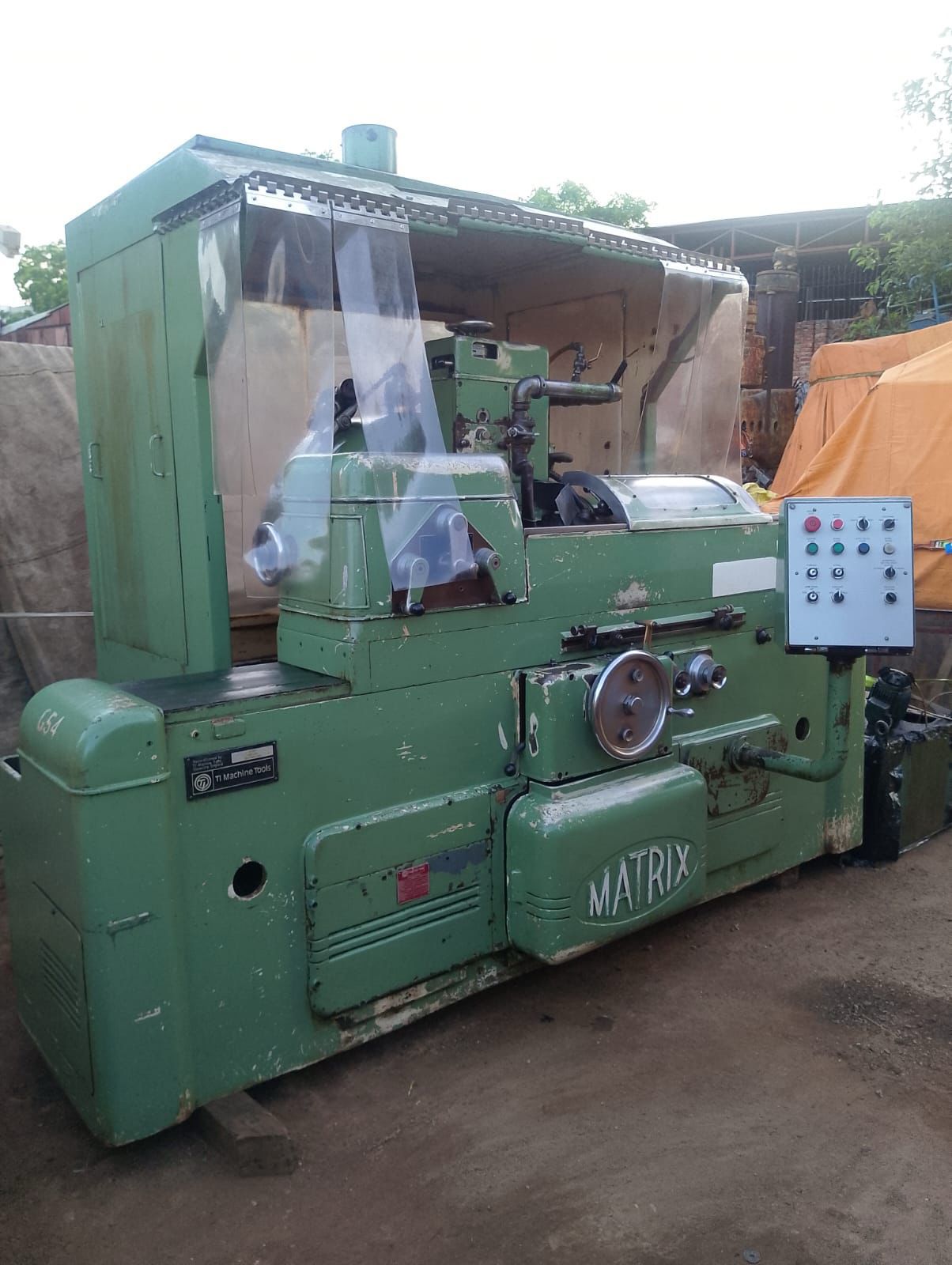

We are a trusted Importer and Trader offering a wide range of used Matrix 39 Thread Grinding Machine. Built for precision external thread grinding, this machine is well suited for job shops, tool rooms, and component manufacturers who need accurate, repeatable thread profiles on small to medium work pieces.
Our offered machines are used across a wide range of industrial applications and are thoroughly inspected on multiple parameters before delivery, ensuring dependable performance in a workshop environment. We supply this range of thread grinders to our clients at an economical price in the market.
Description:
Machine Type: Thread Grinder
Machine Make: Matrix
Machine Model: 39
Robustness, Low Maintenance, Safe Use
Buy used Thread Grinding Machine Matrix 39 in very good working condition at a very competitive price.
| Max Diameter Of Work Piece | 254 mm |
| Max Distance Between Centers | 508 mm |
| Max Length Of Grinding | 482 mm |
| Max Capacity Of Cullet Chuck | 38 mm |
| Limits Of Grinding Head Turning | 45 Degree |
| Centre Tapers | Morse 4 |
| Thread Pitch | 0–42 @ 305 mm |
| Adjustable Backing-Off | 0–5 mm |
| No. Of Rotation Speeds | 20 |
| Work Piece Slide Speed | 1/3 – 60 RPM |
| Work Piece Slide Motor | 0.75 HP |
| Grinding Head Motor | 3.5 / 1.25 HP |
