Nachi cnc vertical cold spline rolling machine PFM 610 E

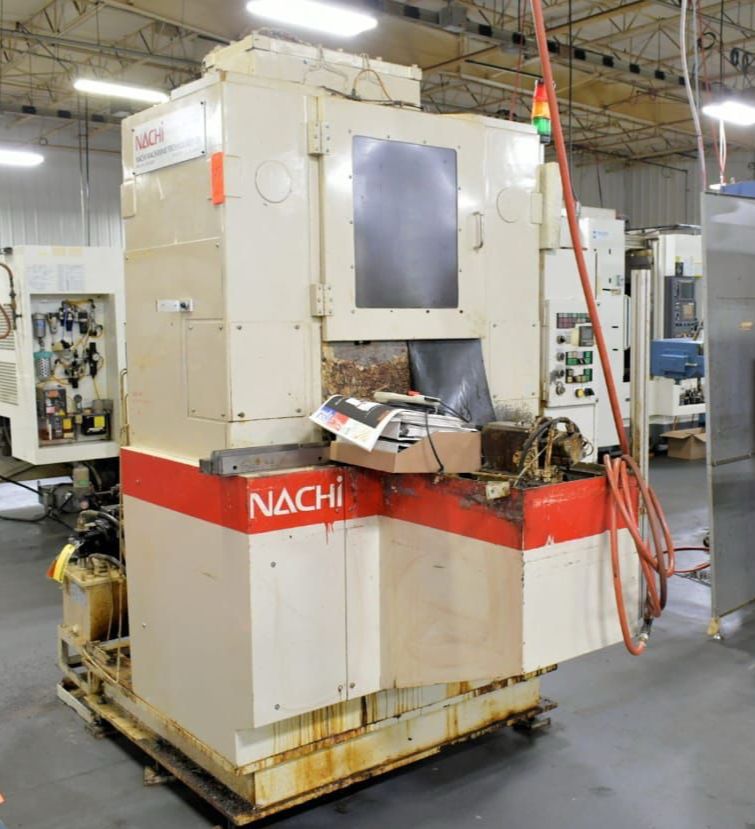

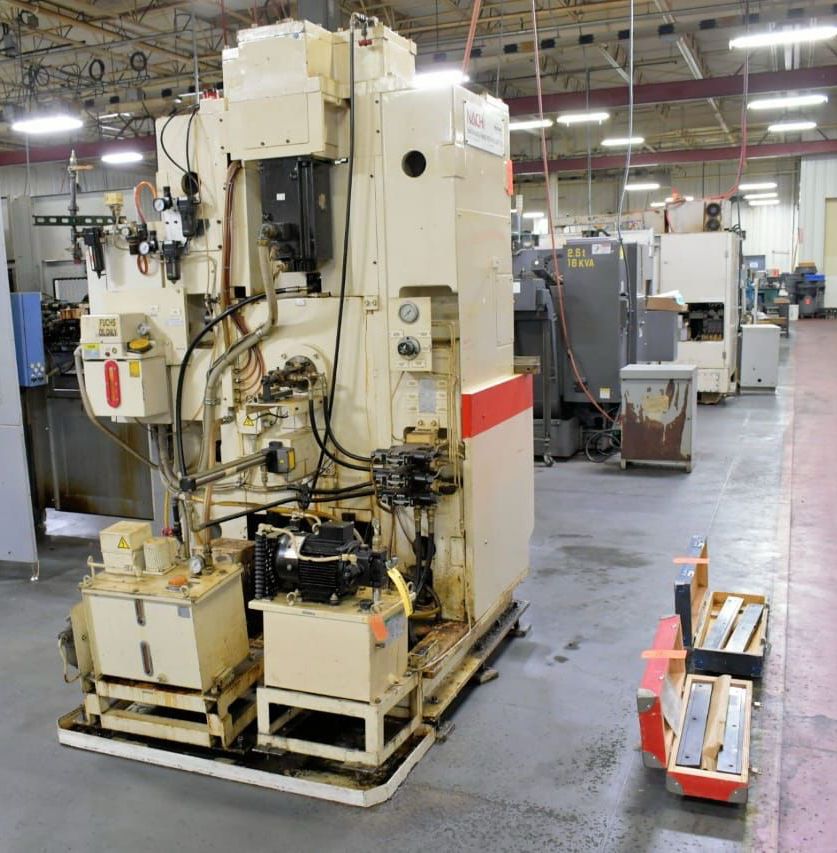

Nachi PFM 610E CNC Vertical Cold Spline Rolling Machine
This used Nachi PFM 610E is a Japanese-engineered CNC vertical cold spline rolling machine designed for high-precision spline and rack forming through NC-synchronized roll forming technology. It handles maximum rolling diameter up to 40mm with a rack length capacity of 623mm and rack stroke of 800mm.
Built for accuracy and repeatability, this spline rolling machine uses a cold-forming process that eliminates material waste while delivering consistent tooth geometry — ideal for automotive, transmission, and precision component manufacturing. Available in excellent working condition at competitive rates from our Delhi facility.
Machine Type: CNC Vertical Cold Spline Rolling Machine Machine Make: Nachi Machine Model: PFM 610 E Max Rolling Dia: 40 mm Max Rack Length: 623 mm Max Rack Stroke: 800 mm Machine Weight: 5,500 kg
Technical Specifications:
|
Max Rolling Dia |
40 |
|
Max Rack Holder Width |
150 |
|
Max Rolling Module |
m1.30 |
|
Max Rack Length |
623 |
|
Max Rack Stroke |
800 |
|
Opening Section Distance |
139.7 |
|
Floor Space |
1.600 x 1.800 |
|
Mass of Machine |
5.500 |
Buy Used Nachi cnc vertical cold spline rolling machine PFM 610 E in best working condition with the most competitive rates in the market.
