KOYO KVD 450 CNC VERTICAL DOUBLE DISC GRINDING MACHINE

Product Description

KOYO KVD 450 CNC VERTICAL DOUBLE DISC GRINDING MACHINE

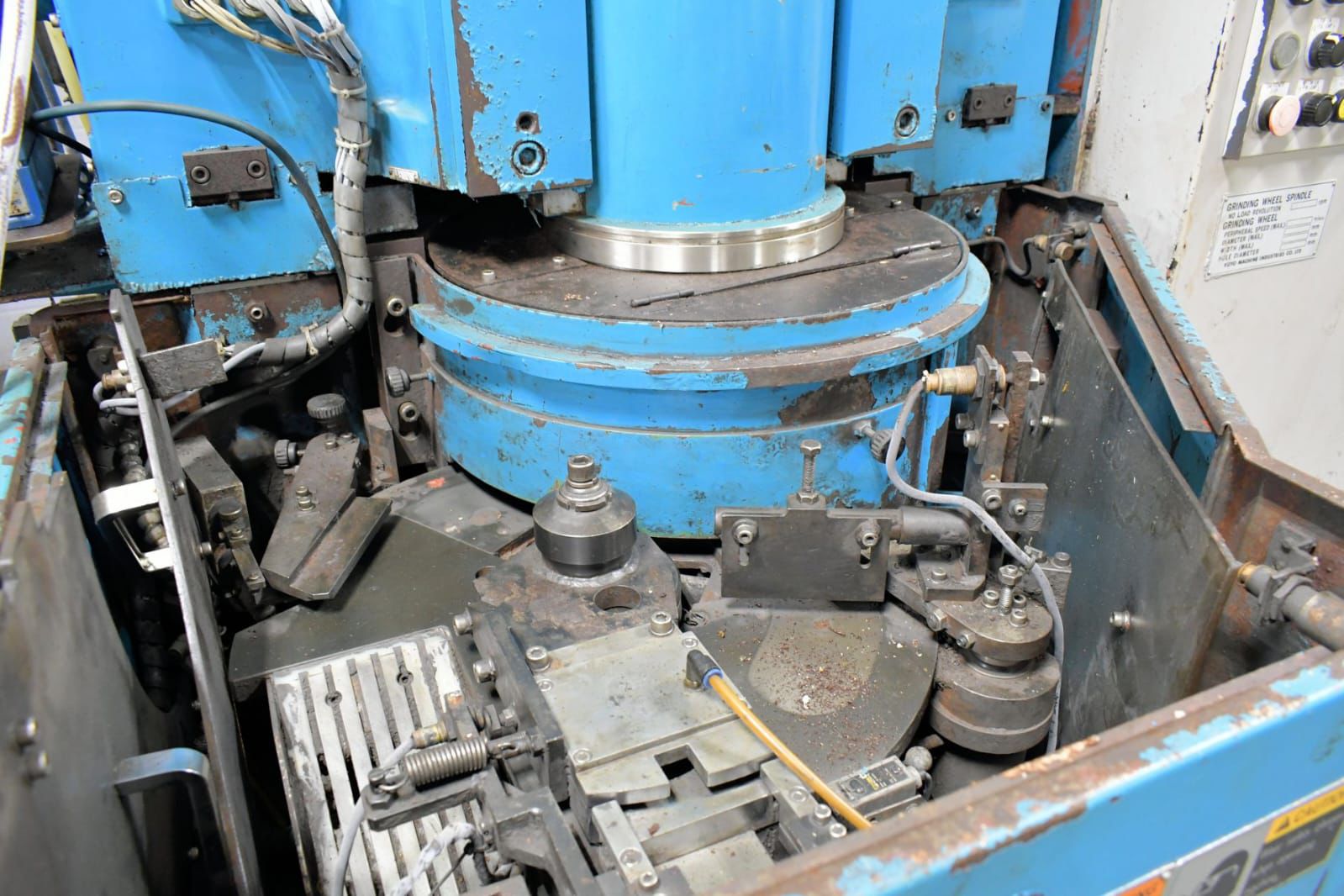

The Koyo KVD 450 is a precision vertical double disc grinder built for high-accuracy, high-throughput flat surface grinding. Equipped with dual CBN grinding wheels mounted on a vertical spindle configuration, this machine simultaneously grinds both faces of a workpiece in a single pass — delivering excellent parallelism, flatness, and surface finish with reduced cycle times compared to conventional single-disc grinders.

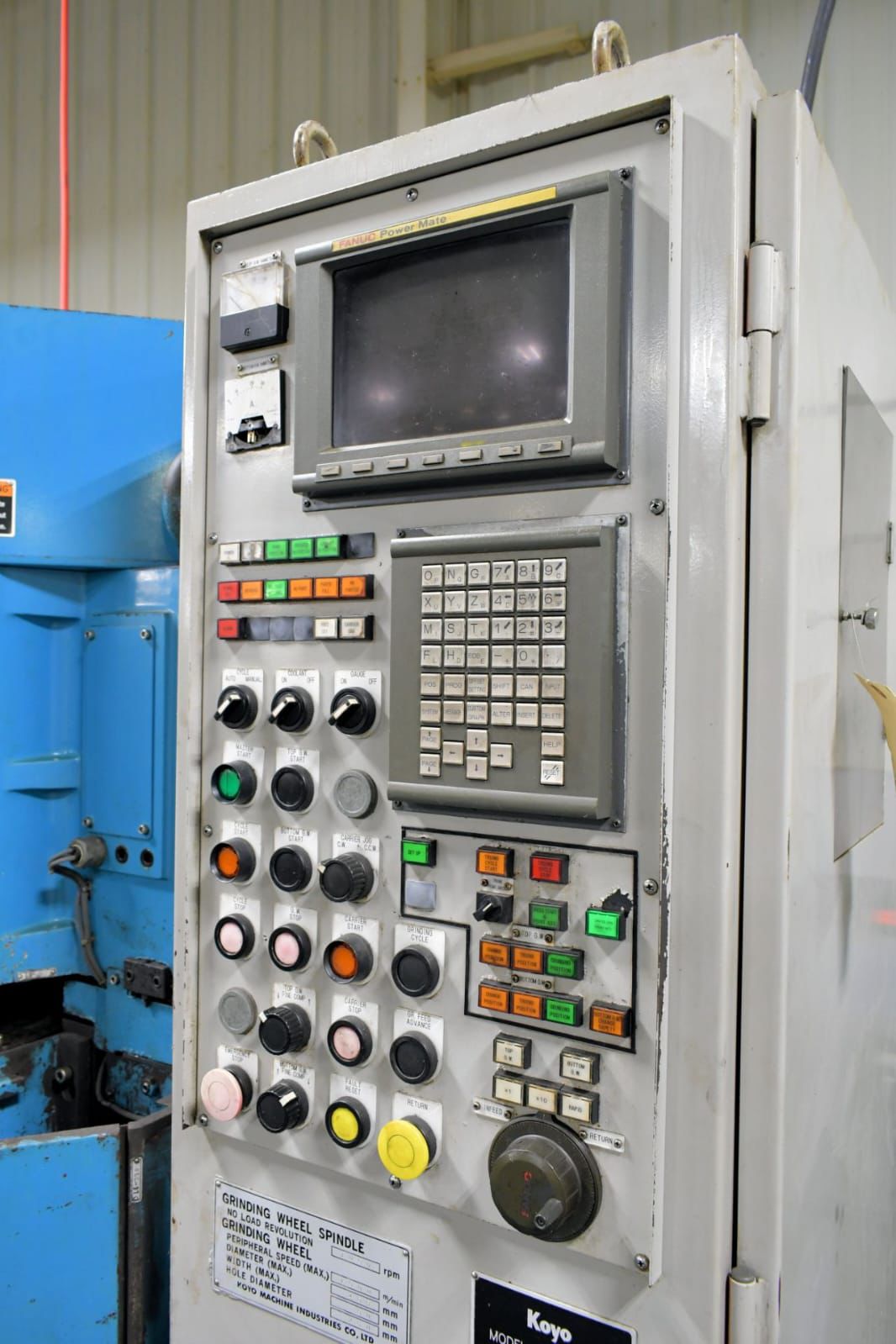

Powered by a FANUC 21 MB CNC control system, the KVD 450 offers repeatable, programmable grinding cycles suited for high-volume production environments such as automotive components, bearing races, and precision-machined parts. The robust spindle design, running at 1,050 RPM with a maximum peripheral wheel speed of 1,500 m/min, ensures stable, chatter-free grinding performance even under continuous production loads.

Product Description

Vertical Double Disc Grinding Machine

This Vertical Double Disc Grinding Machine Vertical Double Disc Grinding Machine is a precision-built solution for high-accuracy, high-volume flat surface grinding. Equipped with dual CBN grinding wheels mounted on a vertical spindle configuration, it grinds both faces of a workpiece simultaneously in a single pass — delivering excellent parallelism, flatness, and surface finish while reducing cycle times compared to conventional single-disc grinders.

Powered by a FANUC 21 MB CNC control system, this Vertical Double Disc Grinding Machine offers repeatable, programmable grinding cycles suited to high-volume production environments such as automotive components, bearing races, and other precision-machined parts. The spindle runs at 1,050 RPM with a maximum peripheral wheel speed of 1,500 m/min, ensuring stable, chatter-free performance even under continuous production loads.

Key Specifications
