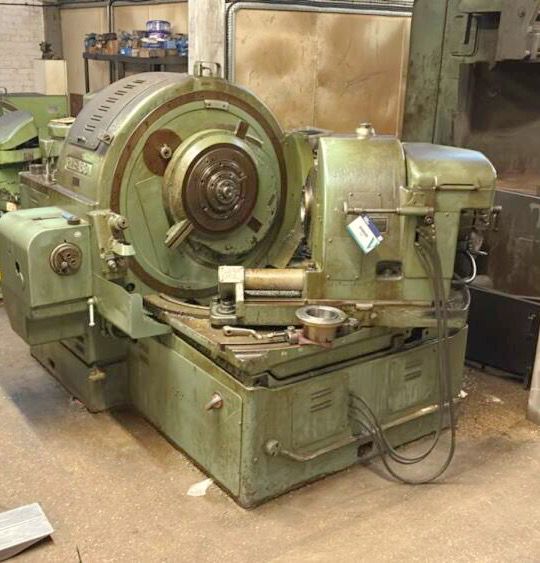

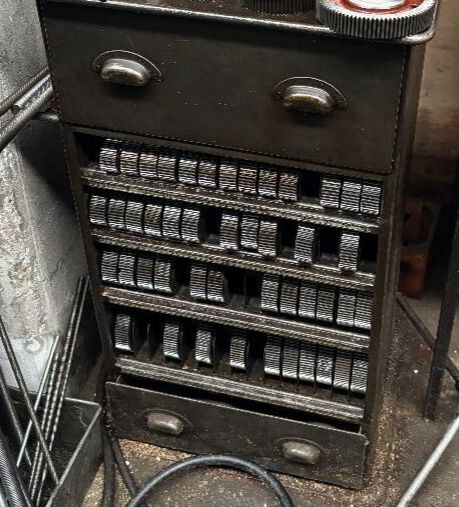

Machine Specifications: Maximum Pitch Diameter 838mm (33"); Maximum Face Width 102mm (4"); With Modified Roll and Extra Cutting Cycles (Cyclical and Format), Specialised Change Wheels Included. Heavy Duty Hydraulic Clamping, Collet System and Heavy Duty Draw Bars for Wheels. Oversize Large Bore Workhead will accommodate Large Series Shafts;
| Maximum Wheel Diameter | 840 mm |
| Gear Width | 250 mm |
| Maximum Module | 15 |
| Minimum Module | 1 |
| Maximum Diameter Gear | 33" |
| Cone Distance Max | 16 1/2" |
| Maximum Pitch Angle | Shaft at 90 Deg: 84 Deg. 18' |
| Minimum Pitch Angle | 5 Deg., 42' |
| Extreme Ratio | 10:1 |
| Max Face Width | 4" |
| Diametric Pitch | 11/2 |
| Diameter of Taper Hole at Large End | 6" 152 mm |
| Taper Per Foot | 3/4" 19 mm |
| Depth Of Taper | 6", 152 mm |
| Diameter Of Hole Through | 5" 127 mm |
| Spindle Nose To Machine Center | 9 1/4", 235 mm |
| Cutter Diameter | 9", 12", 16", 18" |
| Max Offset Above Center | 41/2" |
| Max Offset Below Center | 41/2" |
| Cutter Speeds-Feed Per Minute | 35-200 |
| Feed (Sec./Tooth) | 23-333 |
| Main Motor-2 Speed | 7 1/2 HP |
