Defum WFS 130N Horizontal Boring & Milling Machine

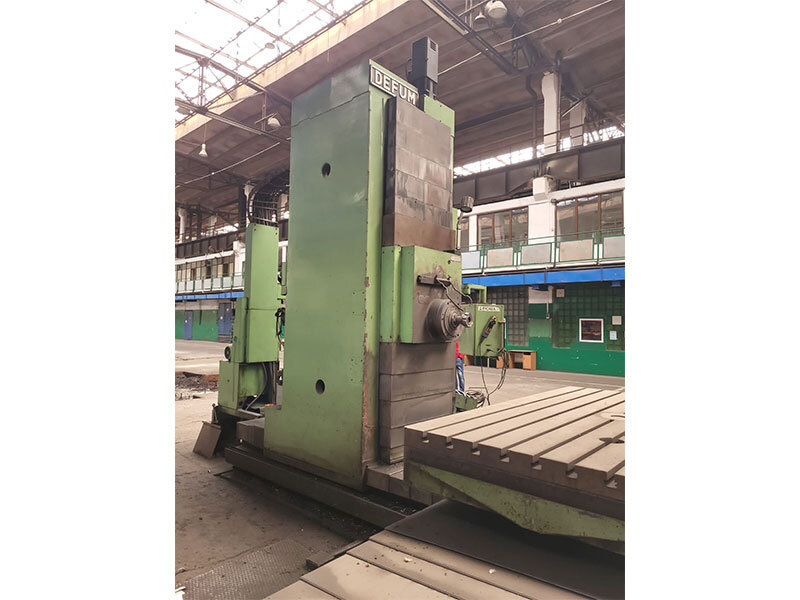

The DEFUM WFS-130N is a Horizontal Boring and Milling Machine, designed for high-precision machining of large and heavy work pieces. It combines the capabilities of both boring and milling processes, making it suitable for a wide range of complex, large-scale manufacturing tasks, such as machining of parts for heavy machinery, molds, and large mechanical components.
Description:
Machine Type: Horizontal Boring & Milling Machine
Machine Make: Defum
Machine Model: WFS 130N
Key Features:
Versatility: Capable of both boring and milling operations, making it suitable for a wide variety of tasks without the need for multiple machines.
Precision: The inclusion of linear scales and a rigid construction allows for high-precision machining, ensuring high-quality finished products.
Heavy Workpieces: With its large table and high load capacity, it is well-suited for heavy, bulky components.
Technical Characteristics:
| Spindle Diameter | 130 mm |
| Cone In The Spindle | ISO 50 |
| Lowest Position Of The Spindle Axis In Relation To The Table Surface | 65 mm |
| The Overlap Of The Table Edge With Respect To The Headstock Face | 65 mm |
| Tool Clamping Axial Force | 1500 Kg |
| Machine Power | 75 KW |

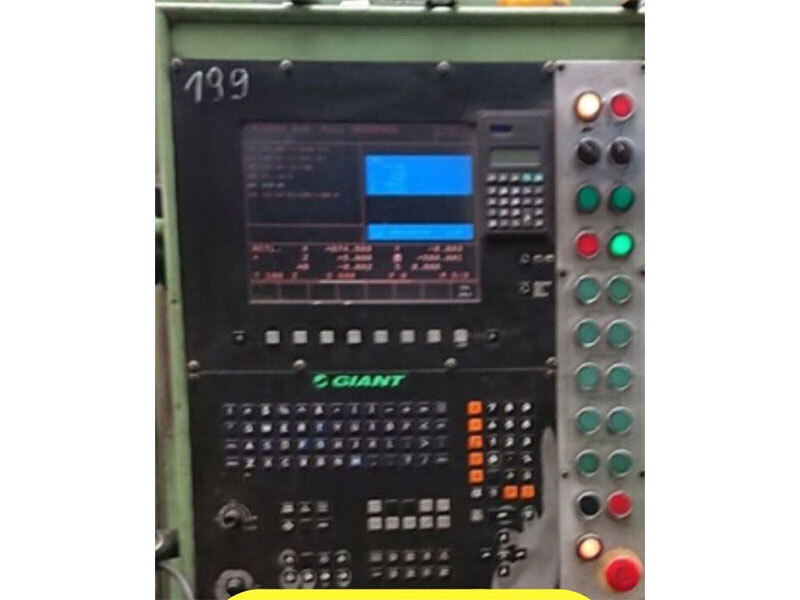

| Control | HEIDENHAIN TNC 415 |
| Turnover | |
| Number Of Rotational Speed Stages | Steplessly in two ranges |
| Rotational Speed Range | 10-1500 RPM |
| Power Of The Rotation Drive Motor | 30 KW (AC Siemens) |
| Machining Space | |
| "X"-Transverse Shift | 3000 mm |
| "Y"-Vertical Shift | 1600 mm |
| Longitudinal Travel | 1000 mm |
| "Z"-Spindle Extension | 700 mm |
| Feed | |
| Working Feed Range In X, Y, W, Z Axes | 2-2000 mm/min |
| Rapid Traverse Of The X, Y, W Axes, | 8000 mm/min |
| Torques Of Feed Drive Motors | 37 Nm |
| Rotary Table | Type S-25 |
| Work Surface | 1600 x 2500 mm |
| Permissible Table Load | 25000 Kg |
Buy Used Horizontal Boring & Milling Machine Defum WFS 130N in perfect mechanical condition at a very reasonable price.
