Technical Specifications – CNC ANGLE HEAD GRINDER MITSUBISHI RD 23 B35A

Control System

FANUC 21i-T

Machine Year

2002

Maximum Swing

12.6 inch

Maximum Center Distance

19.7 inch

Maximum Workpiece Diameter

11.8 inch

Maximum Workpiece Weight

331 lbs

Grinding Wheel Size

17.9 × 6 × 3 inch

Wheel Peripheral Speed

148 FPS

Wheel Rotation Speed

1888 RPM

Wheel Spindle Rapid Traverse

39 FPS

Wheel Spindle Feed Rate

0.00004 to 472 IPM

Table Rapid Traverse

39 FPM

Table Feed Rate

0.00004 to 472 IPM

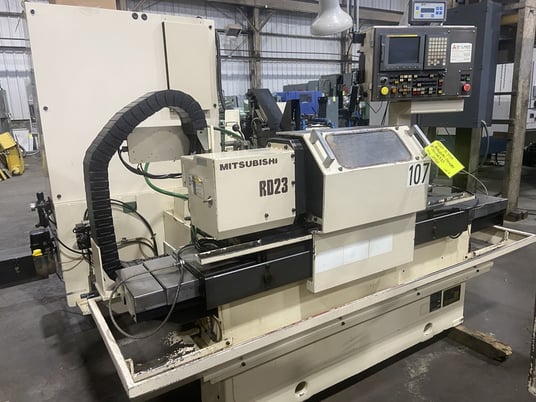

CNC Angle Head Gear Grinder – Mitsubishi RD-23 (B35A)

Name: CNC Angle Head Grinder Mitsubishi RD-23 B35A
Brand: Mitsubishi
SKU: MITSUBISHI-RD23-B35A
Availability: InStock

About CNC Angle Head Gear Grinder

The CNC Angle Head Gear Grinder Mitsubishi RD-23 is a high-precision CNC gear grinding machine manufactured in Japan and equipped with FANUC 21i-T CNC control. This machine is designed for precision grinding of gears with high accuracy, smooth surface finish, and excellent repeatability.

With a maximum workpiece diameter of 11.8 inches and a maximum swing of 12.6 inches, this CNC angle head grinder is ideal for precision gear manufacturing and finishing operations. Its rigid construction and high-speed grinding spindle make it suitable for continuous industrial production.

Applications of CNC Angle Head Gear Grinder

Precision gear grinding
Automotive transmission gears
Industrial gearbox components
High-accuracy spur and helical gears
Heavy engineering gear finishing

Why Buy Used CNC Gear Grinder from Us?

Fully inspected CNC grinding machines
Cost-effective alternative to new machines
Machines sourced from Japan
Immediate availability in India
Support for inspection, installation, and logistics

Frequently Asked Questions (FAQs)

What is the maximum workpiece diameter?

The machine supports workpieces up to 11.8 inches in diameter.

What CNC control does this machine use?

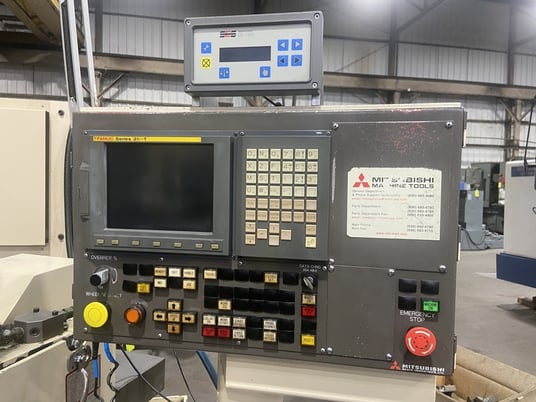

This CNC angle head grinder is equipped with FANUC 21i-T control.

What is the maximum swing of the machine?

The maximum swing is 12.6 inches.

What is the maximum center distance?

The maximum center distance is 19.7 inches.

What is the grinding wheel size?

The grinding wheel size is 17.9 × 6 × 3 inches.

What is the wheel rotation speed?

The grinding wheel rotates at 1888 RPM.

What is the maximum workpiece weight?

The machine can handle workpieces up to 331 lbs.

Is this machine available in India?

Yes, the CNC Angle Head Gear Grinder Mitsubishi RD-23 is available for immediate sale in India with inspection and delivery support.

How can I get the price?

Please contact us to receive the best price for this CNC Angle Head Gear Grinder.
